SP Series High Voltage Diode
1. Low leakage, impact resistance, avalanche breakdown protection, etc.
2. Small size, easy to install, suitable for automatic production.
3. High speed switching characteristics, environmental protection process design, in line with international standards.
2. Small size, easy to install, suitable for automatic production.
3. High speed switching characteristics, environmental protection process design, in line with international standards.
Specification
|
Part |
VRRM KV |
IF(AV) mA |
IFSM A |
IRM μA |
trr nS |
Tstg ℃ |
VFM V |
|
|
SP3L |
3 |
500 |
15 |
TA=25℃ |
2 |
100 |
-55~+160 |
12 |
|
TA=100℃ |
5 |
|||||||
|

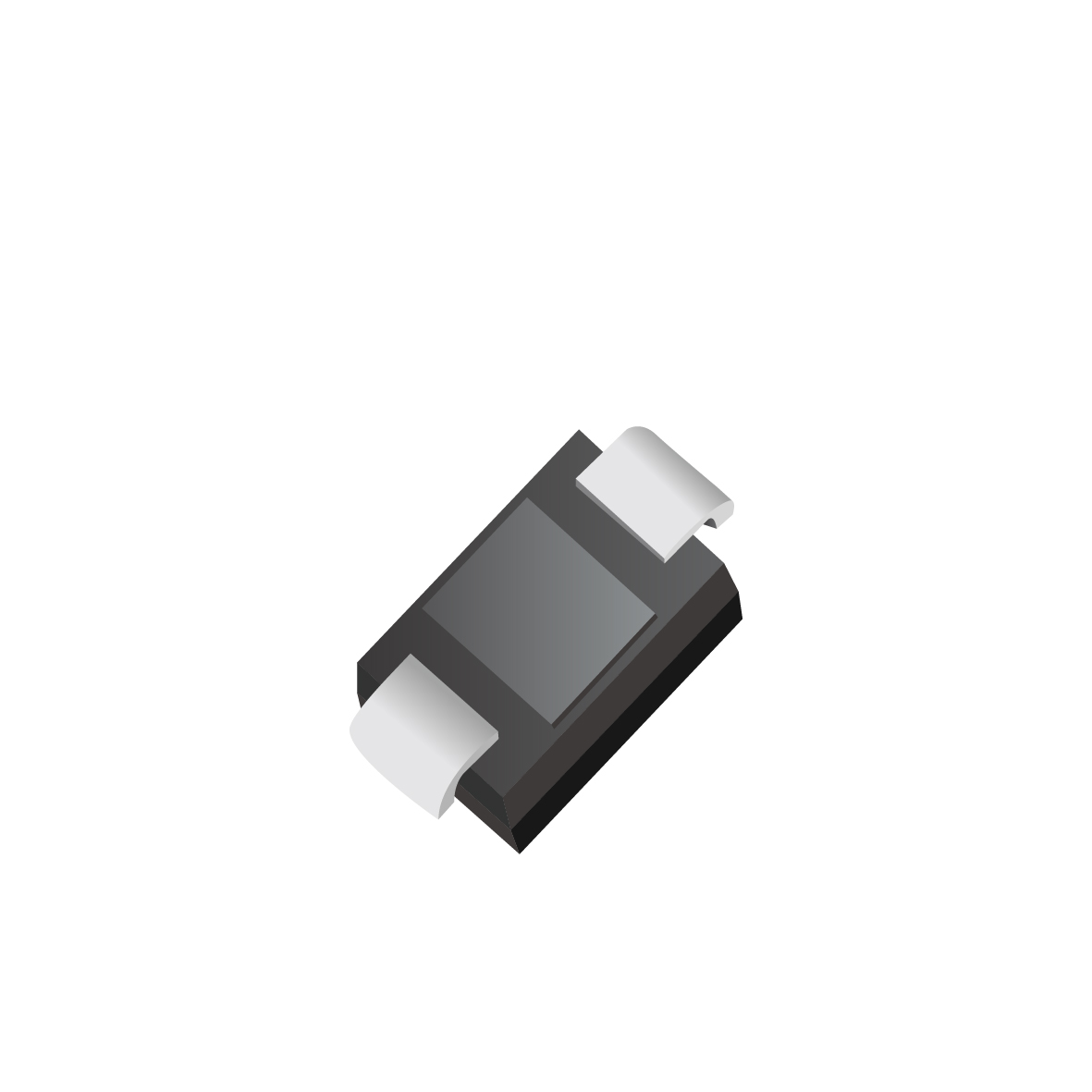

SP5L |
5 |
270 |
10 |
TA=25℃ |
2 |
100 |
-55~+160 |
14 |
|
TA=100℃ |
5 |
|||||||
|

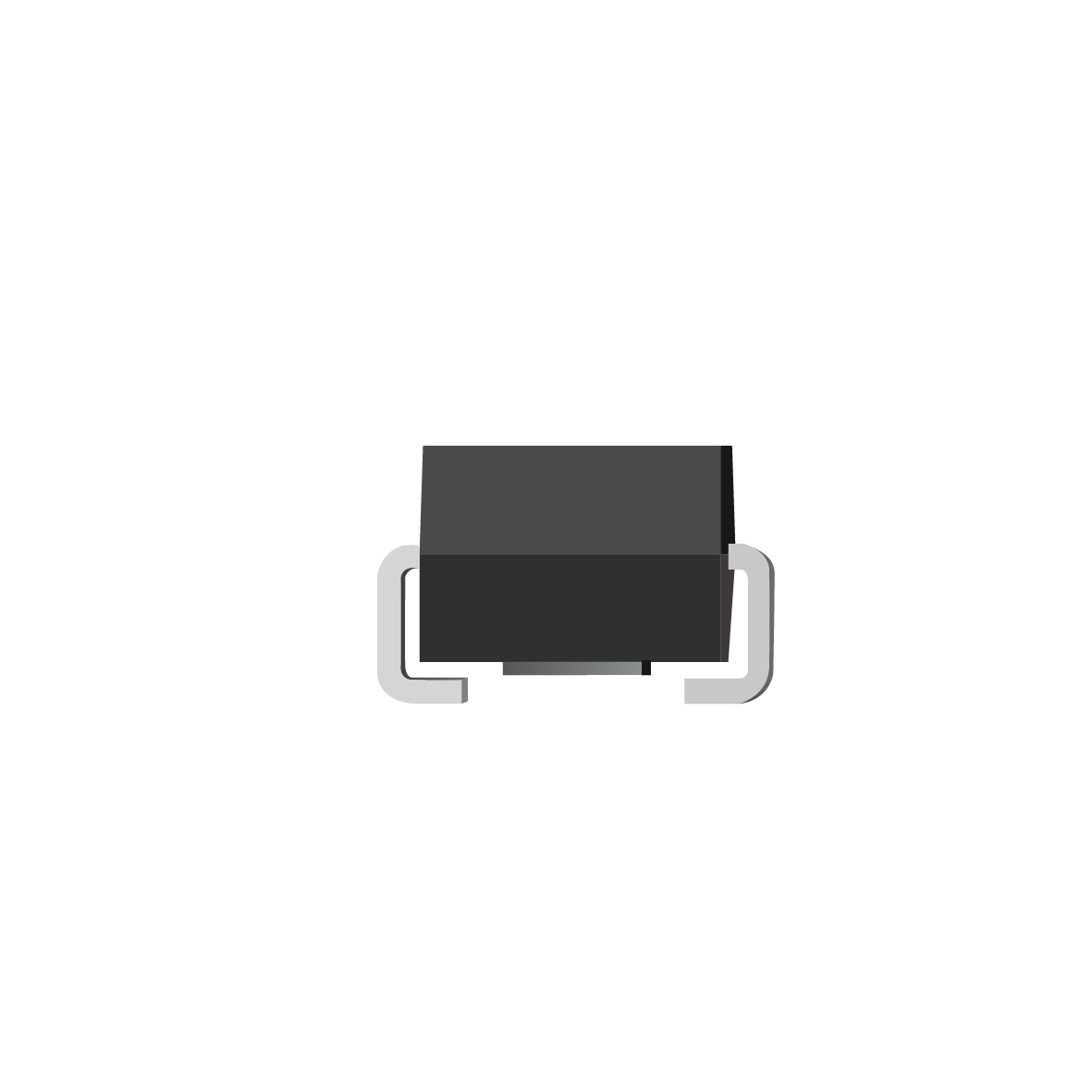

SP8L |
8 |
200 |
10 |
TA=25℃ |
2 |
100 |
-55~+160 |
16 |
|
TA=100℃ |
5 |
|||||||
|
SP5S |
5 |
50 |
1.0 |
TA=25℃ |
0.5 |
100 |
-55~+160 |
14 |
|
TA=100℃ |
5 |
|||||||
